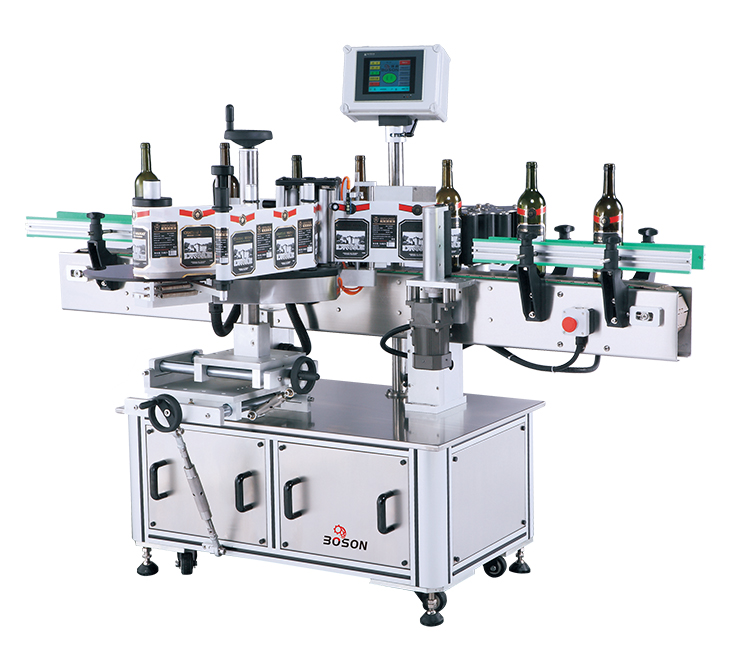

WT-630GS-R Star Wheel Round Bottle Labeling Machine

ProductFeatures

The WT-630GS-R machine is applicable to label cylinder bottles for daily chemicals, beverages, pharmaceuticals etc, Suitable for a single product labeling.

The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

The machine is particularly applicable to circular label for big round bottles, high repeat accuracy, without air bladder, with special design, no need the structure of separate bottle it makes the system easier, higher efficiency The range of labels is extended because of high-power servo motor. Solves the common problem of the insufficient strength.

Star wheel segmentation dish institution; fast speed and high labeling accuracy.

The advanced kind human interface system, on-line helping system,

really human-machine communicating, It is easy to operate so the

worker can operate the machine in several hours.

TechnicalParameters

Type
WT-630GS-R
Production speed
45m/min
Labeling accuracy
± 1mm
Label maximum width
190mm
Bottle diameter
Φ30-Φ100mm
Labels roll inner diamete
Φ76.2mm
Labels roll outer diameter
maxΦ330mm
Outline size
2000×700×1400(mm)
Equipment weight
4-6KG 30L/min
Using power
220V 50Hz 1500W

EquipmentDrawings


ProductVideo
